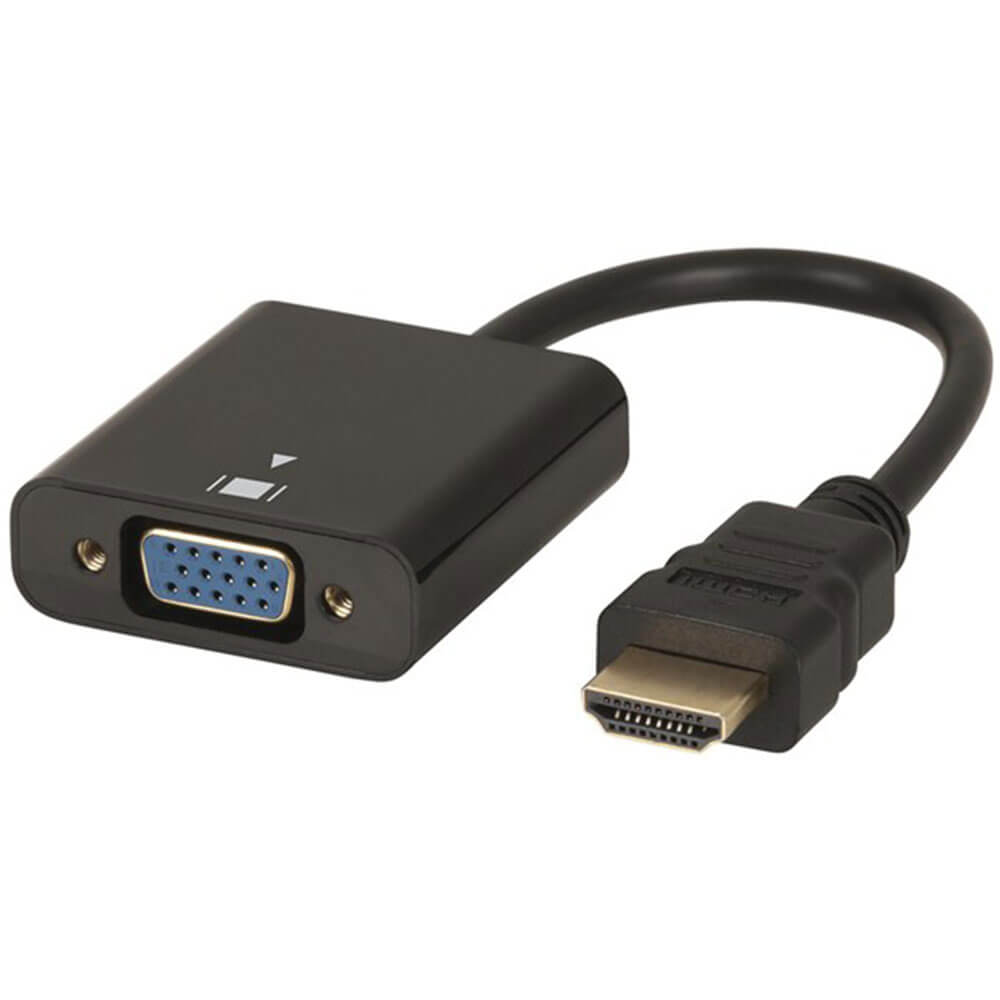

Convert a HDMI source such as a DVD or Blu-ray player to a VGA display. This unit will also convert the audio signal from HDMI to analogue audio which can be output to some speakers or headphones using the 3.5mm audio socket. This unit is powered by the HDMI signal and includes a USB Micro B socket in case additional power is required for stability. Includes a 1m 3.5mm stereo audio cable.
Specifications: Input: 1 x HDMI Output: 1 x VGA, 1 x 3.5mm Audio Jack HDMI: 1.4b HDMI Resolution: 1080p (1920 x 1080), 1080i (1920 x 1080), 720p (1280 x 720) 576p (720 x 576), 480p (720 x 480) VGA Resolution: 1080p (1920 x 1080), 1080i (1920 x 1080), 720p (1280 x 720) 576p (720 x 576), 480p (720 x 480) Frequency: 50/60Hz Power: 5VDC, 500mA (Micro B USB) Cable Length: 160mm Dimensions: 45(L) x 45(W) x 15(H)mm
Product Specifications
- Length : 55.0mm
- Width : 41.0mm
- Height : 17.0mm
- Cable length : 175.0mm
- Supported Display Resolution : 1080p (1920 x 1080)
- Maximum Horizontal Resolution : 1920.0Pixel
- Maximum Vertical Resolution : 1080.0Pixel
- Switcher/Converter Type : Converter
- Input type : HDMI
- Input Connection : HDMI Type-A
- Number of inputs : 1.0pc
- Output Type : VGA
- Output Connection : D15 HD (VGA)
- Number of Outputs : 2.0pc
- Length : 11.5 cm
- Width : 11 cm
- Height : 4.5 cm
